Oil Platinum Troncoquadra

The ideal solution for those who want a complete bottling line with both truncated-conical and square labelers in the same machine.

A full line for oil, with filling, capping, labelling, manual rinsing

Oil Platinum Troncoquadra is an uncompromising bottling line designed to be used even by a single operator, flexible in managing bottle changes, and equipped with two types of labelers in the same machine.

Details

Oil Platinum Troncoquadra is a complete line that offers all the bottling phases in a machine that is easy to install and relatively small. Thanks to the technologies present in the taps, it ensures excellent filling without wasting oil or the risk of organoleptic alterations. In addition, the machine can be equipped with two labelers, truncated conical and square, in the same line for maximum flexibility in packaging.

A table suitable for the accumulation of bottles, in this case there are bottles of oil with black caps and personalized Quinti label

Unloading area

Filling

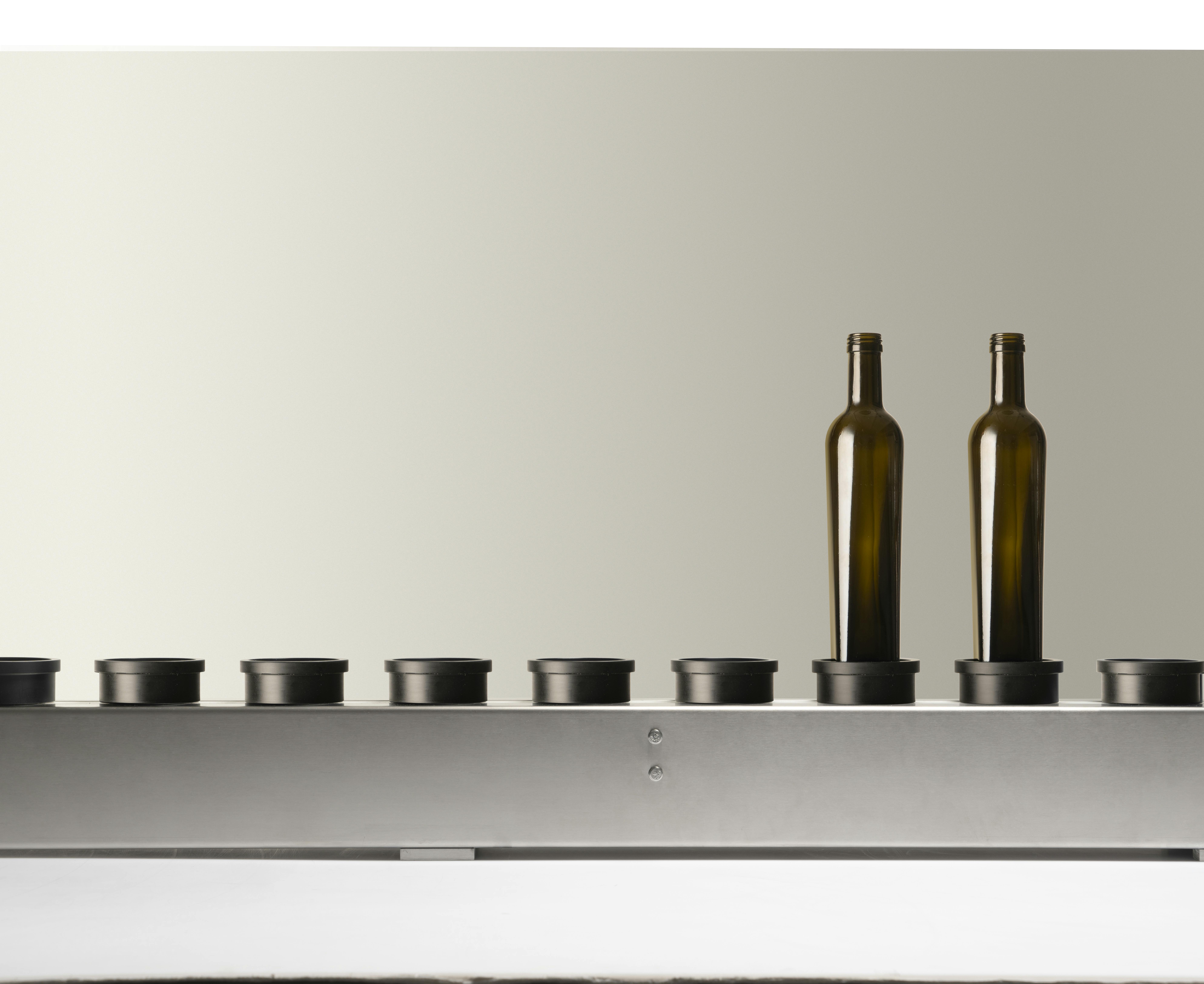

Conveyor belt

Functions

The line is designed on a customizable platform, with functionalities that can be added before and after installation, adding new features on the go. The composable nature of the machine allows expanding its capabilities to closely follow the company's growth.

These components cannot be removed (

Manual blow molding machine, Truncated-conical labeler, High vacuum filling, Screw capping, Square labeler

Plus Functions

Quinti machines can be equipped with additional components and features that help make production more efficient and products even more exclusive.

Additional bottle format change

Manage additional bottle formats with a new set of conveyor belt plates.

Remote control

They allow you to manage the machine from a tablet or smartphone via the network connection present in the machine.

Remote assistance

A technology that allows you to reach the machine remotely for assistance. With an annual fee after the first year of purchase.

Industry 4.0

The machine comes equipped with technologies that allow it to dialogue with the customer's management systems.

Draft tank

An optional tank is used to ensure linear and constant filling. Useful in case the product storage tank exerts excessive pressure.

HD LED light

HD LED light efficiently illuminates the filling and capping area with low consumption. Note: Installable during order only.

Remoted switch

The remoted switch offers the possibility of starting or stopping the machine cycle from the general electrical panel.

IFS protections

Protective materials are installed on the machine to ensure that the bottles are shielded from external agents until the capping phase. Note: Installable during order only.

Automatic end of product detection system

A technology stops every machine operation when there is no more olive oil to process.

Techinical specifications

Machine weight

Approx. 1300 Kg

Size

Approx. 4500x1500x2450 H

Consumption

Air 350 l/min; Electricity 230V 50Hz 3.5 kW

Productivity*

750 ml up to 600 b/h; 500 ml up to 68 b/h; 250 ml up to 750 b/h

Bottle size

Width - Min 40 Max 110; Height - Min 130 Max 350; Collo - 19 minimal hole guarantee

Cap Types

Screw Cap 31,5x24; DOP Cap 33x48

*NOTE

For filling and capping operations only. Bottling capacity could be influenced by several factors, such as product type, bottling temperature, bottle format, and so on.

The machines presented are fully equipped. Weights, dimensions, and performances for the technical aspects of the
machine may vary according to the configuration chosen by the customer. The manufacturer reserves the right to make changes to the
product at any time and without notice.
