Spirits Platinum

Designed for companies that need a complete bottling line that ensures excellent filling and quality packaging, as well as a host of additional features

Full line for spirits, with filling, capping, labelling, automatic rinsing, t cap version

Spirits Platinum is Quinti's complete bottling line designed to offer the best user experience for the operator, with unparalleled flexibility in the management of both bottle and liquid changes.

Details

Spirits Platinum is the complete line designed to manage the bottling of a wide range of spirits. Its small size and clear division into consequential phases make it perfectly manageable even by a single operator. The peculiar technologies used in Spirits Platinum ensure a filling without product waste and organoleptic alterations. The double lung and the integrated drip system do cleaning and change liquid quickly and easily.

Unloading area

Filling

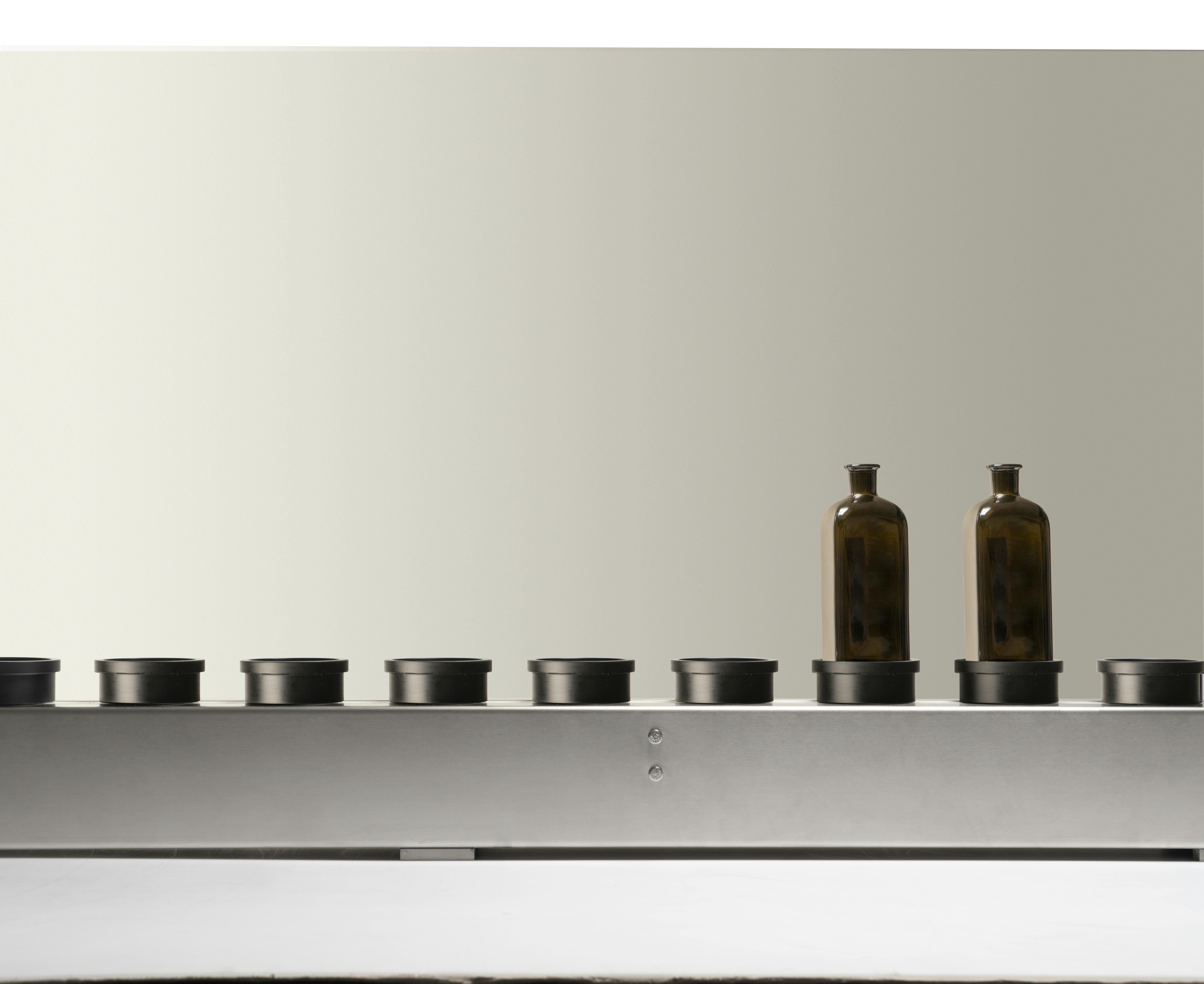

Conveyor belt

Functions

The line is designed on a customizable platform, with functionalities that can be added before and after installation, adding new features on the go. The composable nature of the machine allows expanding its capabilities to closely follow the company's growth.

These components cannot be removed (

Manual rinser, Automatic rinser, Truncated-conical labeler, Vacuum filling, T-capping, Screw capping, Stelvin capping, Square labeler

Plus functions

Quinti machines can be equipped with additional components and features that help make production more efficient and products even more exclusive.

Additional bottle format change

Manage additional bottle formats with a new set of conveyor belt plates.

Remote control

They allow you to manage the machine from a tablet or smartphone via the network connection present in the machine.

Industry 4.0

The machine comes equipped with technologies that allow it to dialogue with the customer's management systems.

Remote assistance

A technology that allows you to reach the machine remotely for assistance. With an annual fee after the first year of purchase.

Remoted switch

The remoted switch offers the possibility of starting or stopping the machine cycle from the general electrical panel.

HD LED light

HD LED light efficiently illuminates the filling and capping area with low consumption. Note: Installable during order only.

Draft tank

An optional tank is used to ensure linear and constant filling. Useful in case the product storage tank exerts excessive pressure.

Technical specifications

Machine weight

Approx. 1800 Kg.

Size

Approx. 5900x2000x2500H

Consumption

Air 350 l/min; Electricity 380V - penatpolar- 50Hz 3.5 kW

Productivity*

750 ml up to 500 b/h; 375 ml up to 600 b/h

Bottle size

Width - Min 50 Max 110; Height - Min 210 Max 420; Collo - 17 minimal hole guarantee

Cap Types

T cap; scew cap 31.5x24; anti-refill pressure cap 33x48; stelvin cap Ø30

*NOTE

For filling and capping operations only. Bottling capacity could be influenced by several factors, such as product type, bottling temperature, bottle format, and so on.

The machines presented are fully equipped and with T-capping. Weights, dimensions, and performances for the technical
aspects of the machine may vary according to the configuration chosen by the customer. The manufacturer reserves the right to
make changes to the product at any time and without notice.
