Wine Smart

Small monoblock machine designed for filling and capping operations only.

02- 03
03- 03

Wine Gold is a monoblock designed for bottling wine, of small size and with essential functions. Manageble by one person, it allow quick and flexible bottle format changes, ensuring a filling without product alterations.

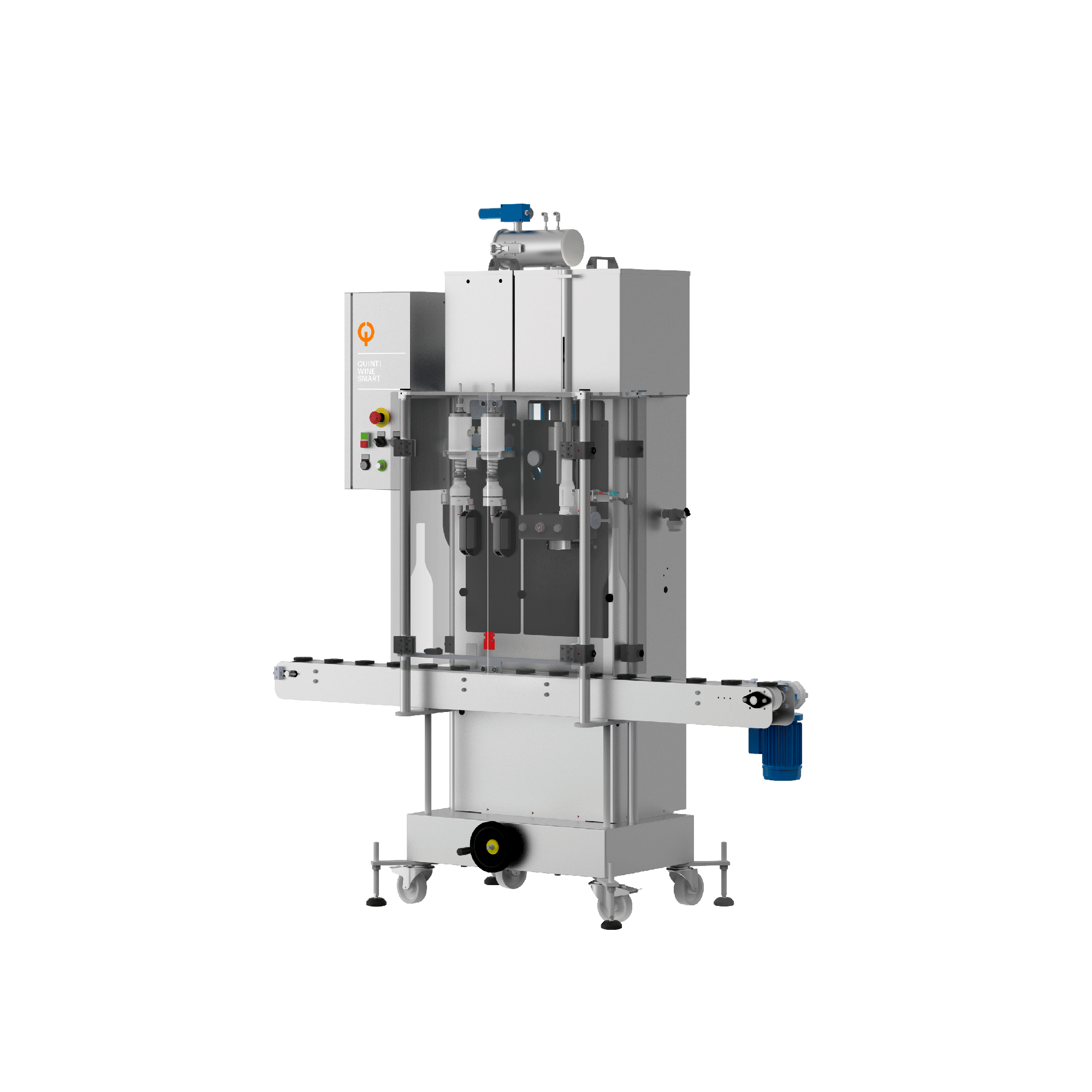

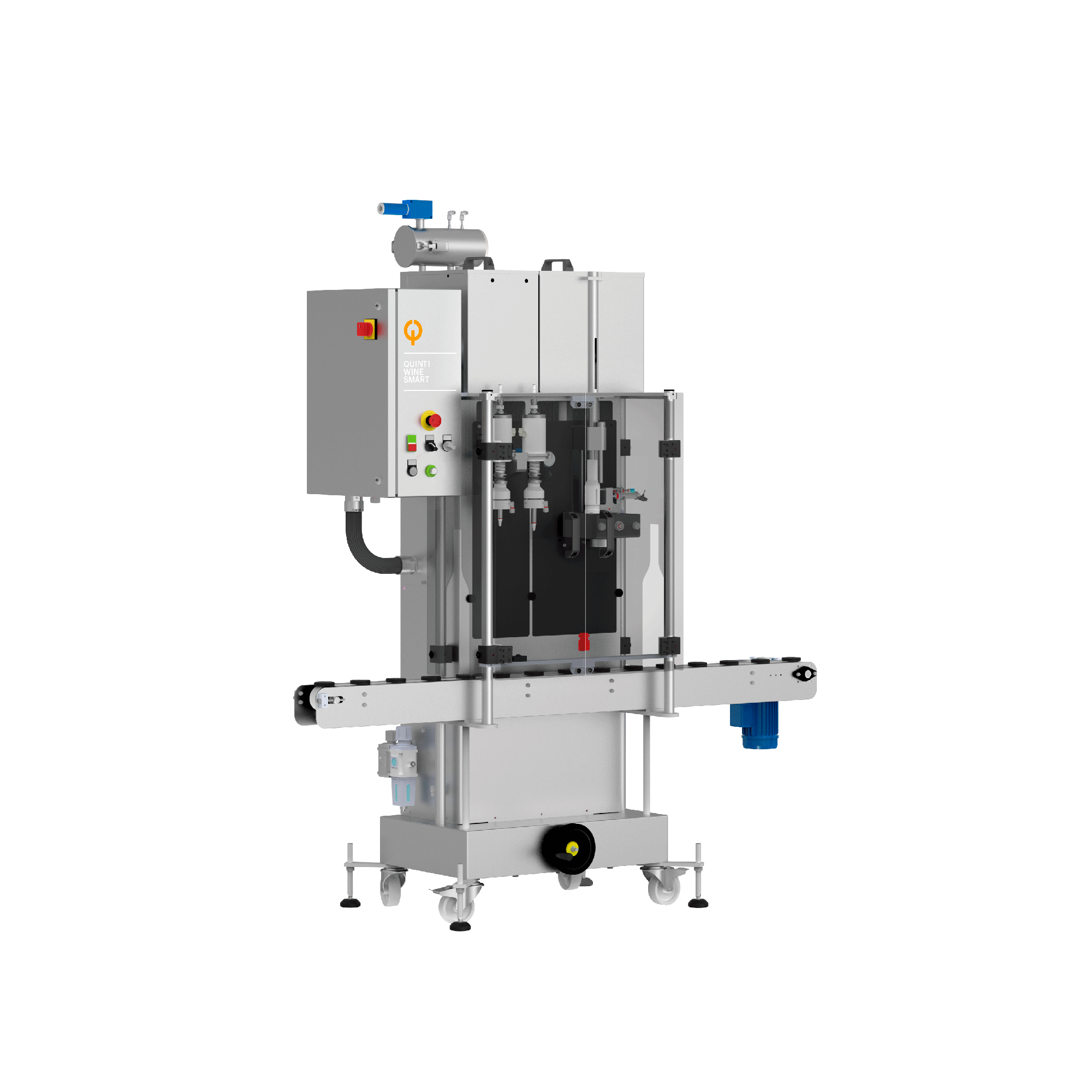

Wine Smart is Quinti's smallest monoblock machine, equipped with swivel wheels, it easy to transport on flat surfaces. Ensures excellent gravity filling. The conveyor belt is designed for practical and quick format change, thanks to the plates system.

Conveyor belt
RIDC nozzles


The monoblock is designed to ensure excellent filling with its essential functions included in the model. Moreover, it is possible to add "Plus functions" to widen the machine's potential.

These components cannot be removed (
Gravity filling, Natural Corking, Stelvin capping, Vacuum corking System

Plus functions

Quinti machines can be equipped with additional components and features that help make production more efficient and products even more exclusive.

Additional bottle format change
Manage additional bottle formats with a new set of conveyor belt plates.

Technical specifications

Machine weight

Approx. 300 Kg.




Air3450 l/min; Electricity 380V 50Hz 2.5 kW


Gravity 750 ml up to 400 b/h

Bottle size

Width - Min 50 Max 110; Height - Min 240 Max 400; Collo - 17 minimal hole guarantee

Cap Types

Natural corking Ø22/27 H35/50; Stelvin capping Ø30


For filling and capping operations only. Bottling capacity could be influenced by several factors, such as product type, bottling temperature, bottle format, and so on.


The machines presented are fully equipped, with gravity filling and stelvin capping. Weights, dimensions, and performances for the technical aspects of the machine may vary according to the configuration chosen by the customer. The manufacturer
reserves the right to make changes to the product at any time and without notice.
